NUMBER OF INPUTS:
2

INPUT TYPE:
Active balanced with RFI filtering

INPUT AUDIO LEVEL:
Adjustable - 10 dBu to +4 dBu

MAX INPUT LEVEL:
+ 26 dBu

INPUT IMPEDANCE:
≥ 10K Ohms (balanced)

INPUT CCMR:
60 dB at 60 Hz

GAIN:
20 dB Max

NOMINAL LEVEL:
+ 4 dBu input/output

PEAK LEVELS:
+ 26 dBu input and + 26 dBu output

NUMBER OF OUTPUTS:
8

OUTPUT LEVEL:
+ 4 dBu

MAX OUTPUT LEVEL:
+ 26 dBu

OUTPUT IMPEDANCE:
< 40 Ohms

OUTPUT GAIN ADJUST:
+ 8 dB to - 10 dB for each output

OUTPUT PROTECTION:
Short circuit protection on each output

FREQUENCY RESPONSE:
+/- 0.1 20 Hz to 20 kHz

THD DISTORTION AT +4 DB:
0.01% 20 Hz to 20 kHz

THD DISTORTION AT MAXIMUM LEVEL:
0.01% 20 Hz to 20 kHz

IMD DISTORTION SMPTE:
0.05%

SIGNAL TO NOISE RATIO:
> 90 dB 20 Hz to 22 kHz

INTER CHANNEL LEVEL DIFFERENCE:
> 0.5db 20 Hz to 20KHz

INTER CHANNEL PHASE DIFFERENCE:
< 0.5 degrees 20 Hz to 20 kHz

INTER CHANNEL CROSSTALK:
> 90 db 20Hz to 20KHz

SLEW RATE:
13 volts per microsecond

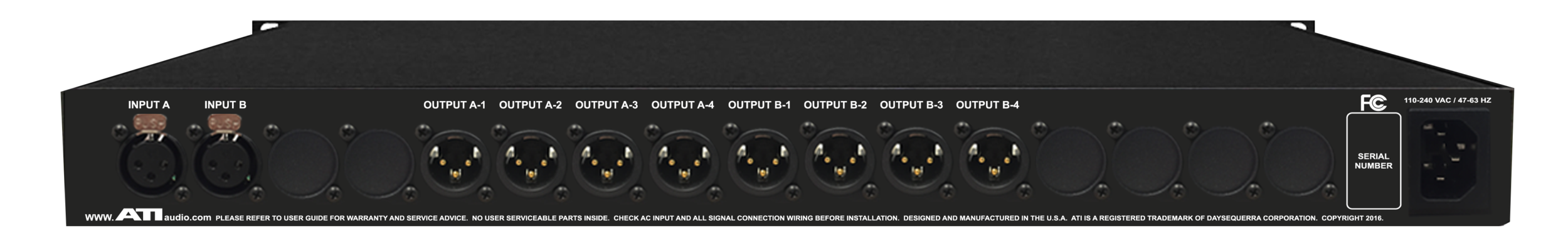

IO CONNECTORS:
XLR

ELECTROMAGNETIC INTERFERENCE (EMI):
Unit is intrinsically EMI proof

POWER:
Auto-sensing 110-240 VAC +/- 10% 47 to 63 Hz, 20 VA

SIZE:
19" (48.3 cm) W x 1.75" (4.4 cm) H x 7.5" (19cm) H

WEIGHT:
5 lbs. (2.3 kg) net shipping weight

WARRANTY:
Limited One Year
