SPECIFICATIONS
INPUT
CONNECTORS -1 each XLR Female
WORD CLOCK CONNECTORS - AES3 and AES11
LEVEL - XLR 0.2Vp-p minimum
IMPEDANCE -Transformer isolated, balanced and floating, XLR 110 ohms; terminating resistors may be switched in or out via internal switch
WORD CLOCK IMPEDANCE - independent transformer issolated 1x6 AES/EBU distribution amplifier
SAMPLING FREQUENCY - 27 to 192kHz
CABLE LENGTH - > 1000 feet (300 meters) of 110 ohm cable with equalizer
EQUALIZER - EQ for long lines via internal switch
CLOCK - Regenerated from input signal with dual mode PLL or non-re-clocked to preserve surround coding, switchable via internal switch
A-B INPUTS BRIDGED - Inputs can be bridged via internal switch to provide 1x6 output capability
OUTPUTS

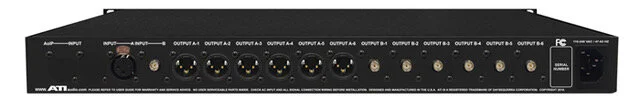

CONNECTORS - 3 each XLR Male
WORD COCK CONNECTORS - 6 isolated 75 Ohm BNC
LEVEL - XLR 4Vp-p loaded
IMPEDANCE - XLR 110 ohms, balanced and transformer isolated
OUTPUT JITTER - < 300 picoseconds peak to peak.
PROPAGATION DELAY - < 25 nanoseconds

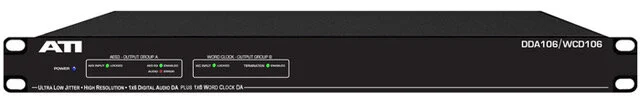

INDICATORS
POWER
AES INPUT LOCKED
AES EQ ENABLED
AUDIO ERROR
A-B INPUTS BRIDGED
POWER SUPPLY - Internal Supply, AC Input 100-250 VAC 50/60 Hz, 25W Maximum, IEC320 3 pin connector
SHIPPING SIZE - 20.5” W x 4.75” H x 16.5” D, 9 lbs.
WARRANTY - Limited, One Year Warranty
